Route Map v0.5.0-beta.5, drawn by the app itself from saved traces from Manila to heise.de,
origin set in Settings; the first hops (the home network and the ISP) carry documentation addresses.
The images follow this site's light or dark mode, as the app follows the system.
macOS. Sixteen hops: the home network and the ISP, then Hong Kong, Singapore, Paris and Frankfurt on Arelion's backbone (AS1299), placed by carrier site code, then Plus.line in Germany (AS12306). Lines warm with the RTT each step added; the summary has the AS path with RPKI, the countries, a RIPE Atlas baseline, the RIS view and the BGP updates of the last 48 hours.DNS timing and port tests. The lookup of heise.de through the system resolver and an added resolver, with each answer's time and TTL; ports 443 and 80 open with their connect times, the others filtered.A remote agent (a synthetic trace). Run from a server over your own ssh and drawn from where the server is; the provider's first hops are hidden.Globe. Centred on the route; drag to turn it.Compare two runs. Against an earlier run: the same path through Hong Kong, Singapore and Paris, except that hop 8 now answers from Singapore instead of Marseille.Windows (light theme), rendered by the app on a Windows runner from the same saved trace.

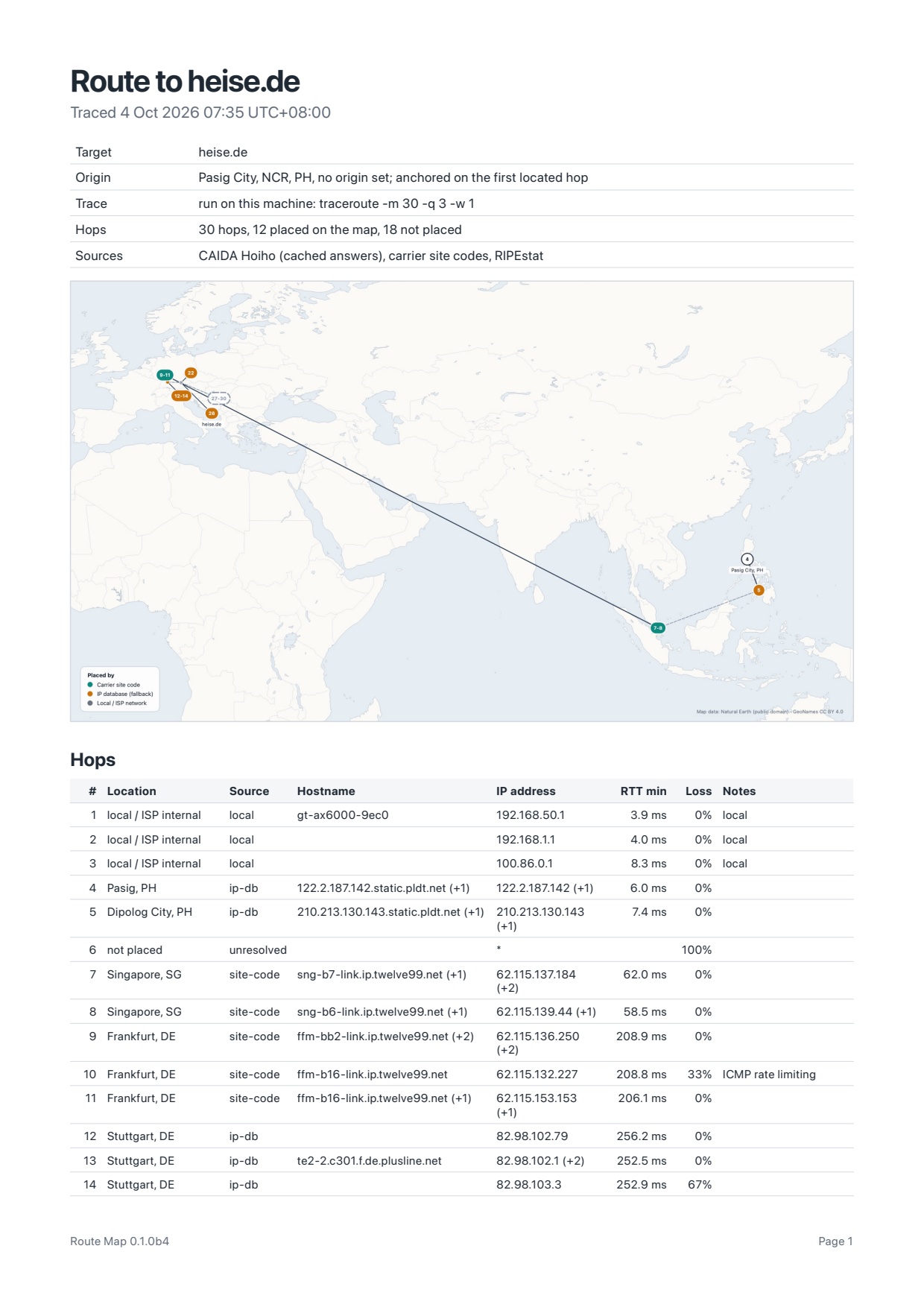

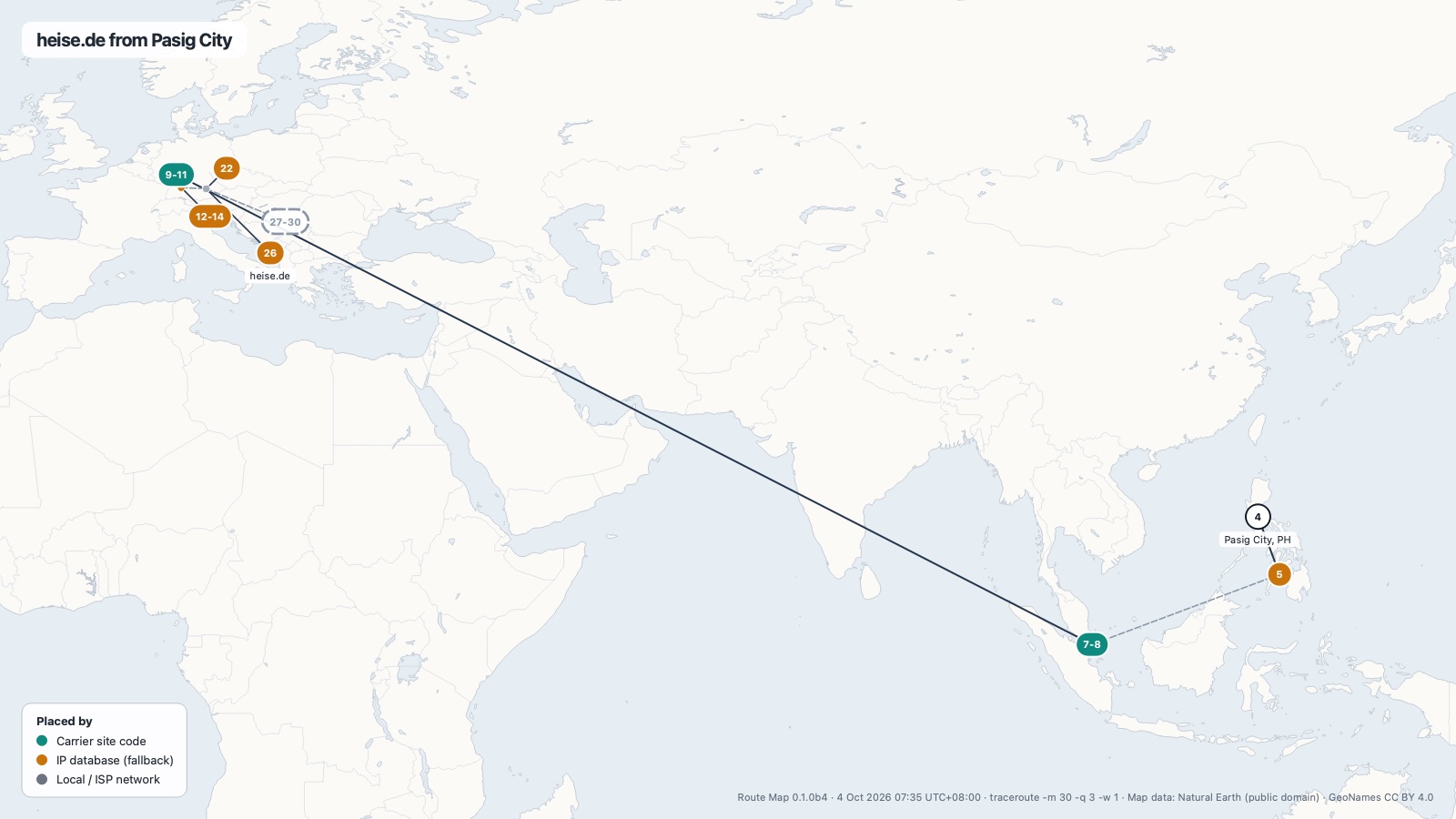

PDF report, page one: the map, the route summary and the hop table with ASN and RPKI. Later pages: DNS and ports when tested, the comparison, the unplaced hops with their reasons, how each location was decided, and the raw trace as an appendix.PNG export, 1600 by 900, light or dark, with the legend and a provenance line.
The Source column: local for the home network, an IP database for the ISP and the German hops, site codes for Arelion's backbone, and a hollow marker where the database knows only the country.
